Tudor Manor

Tudor Manor

Tudor Manor

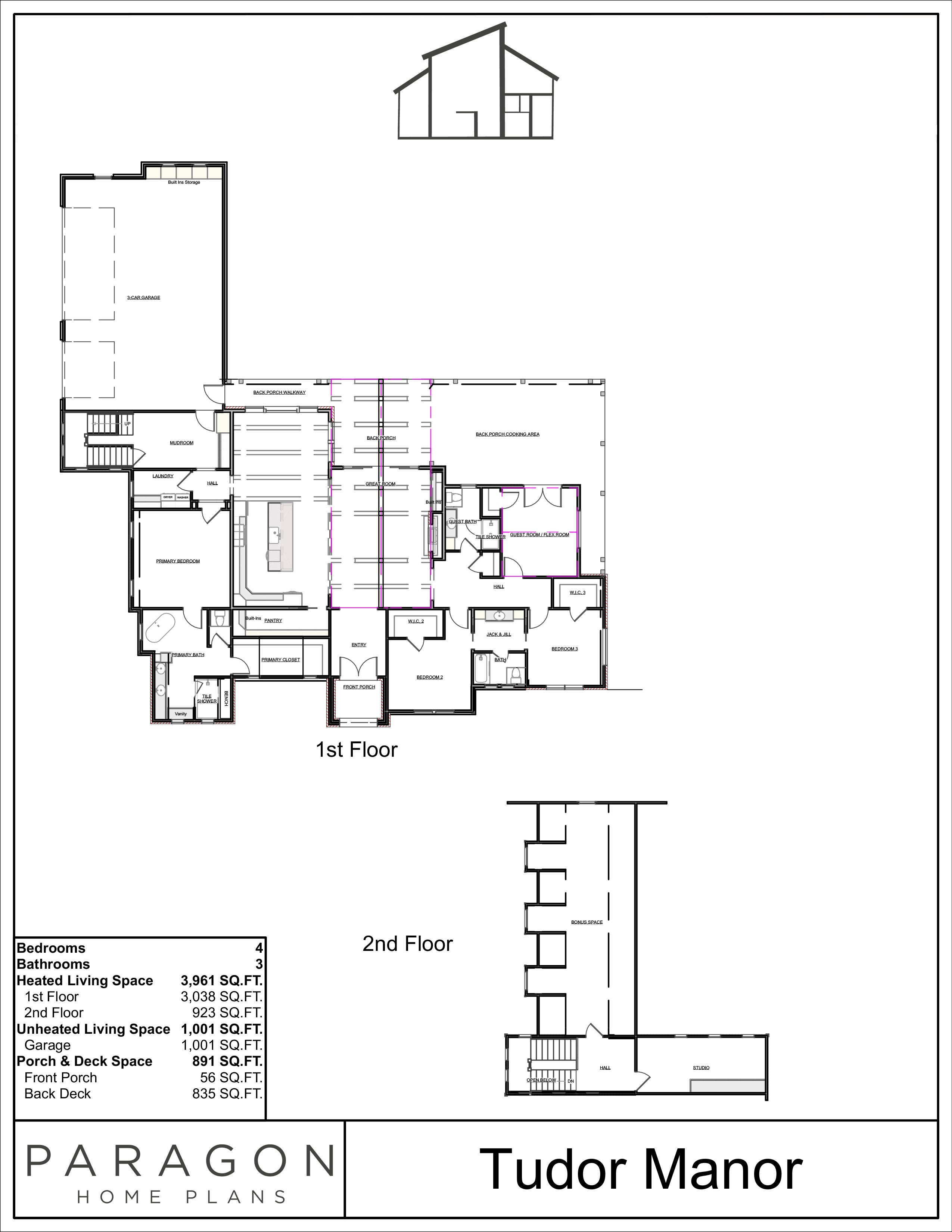

Floor Plan for Tudor Manor
Sale price$1,245.00

Plan Code: P-433-004-S

SQUARE FOOTAGE BREAKDOWN

Total Heated Area: 3,961 sq. ft.
First Floor: 3,038 sq. ft.
Second Floor: 923 sq. ft.


BEDS/BATH

Bedrooms: 4
Full Bathrooms: 3


STYLE

Tudor


GARAGE

Type: Attached
Area: 1,001 Sq.Ft.
Count: 2
Entry: Side


FOUNDATION TYPE

Standard Foundations: Slab
Optional Foundations: Walkout, Monolithic Basement, Daylight, Basement, Crawl


ROOF DETAILS

Primary Pitch: 10 on 12
Secondary Pitch: 12 on 12
Framing Type: Stick or Truss



EXTERIOR WALLS

Standard Type(s): 2x4
Optional Type(s): 2x6



DIMENSIONS

Width: 87’3“
Depth: 90’1”
Max Ridge Height: 29’



CEILING HEIGHTS

First Floor / 10’0”
Second Floor / 8’0”



THIS PLAN CAN BE MODIFIED.
